Combine a chemically resistant fluoropolymer sealing surface with an energizing core selected for the duty. Auter reviews FEP- and PFA-jacketed constructions with FKM, silicone (VMQ), or stainless-steel spring cores.

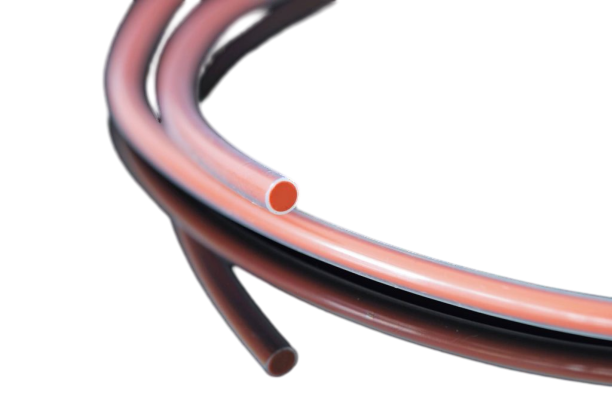

A seamless FEP or PFA jacket forms the media-facing surface, providing broad chemical resistance, low adhesion and low friction. A resilient FKM or silicone core supplies the elastic contact force that solid PTFE lacks.
This construction is considered when a conventional elastomer lacks chemical resistance but a solid PTFE ring cannot supply enough elastic recovery. It is most often used as a static seal in non-abrasive service.
The jacket, core, gland and installation route work as a system. Every option remains subject to application and product-specific confirmation.
| Construction | Main reason to consider | Typical fit | Confirm before selection |
|---|---|---|---|
| FEP + FKM | Broad chemical barrier plus good core recovery | General static chemical-processing duties | Media/concentration, temperature, pressure, groove and compound data |
| FEP + VMQ | Chemical barrier plus low-temperature flexibility | Static duties needing a softer core response | Exact VMQ grade, thermal cycle, clamp load and documentation |
| PFA + FKM | More demanding jacket option | Higher-temperature static process equipment candidates | Actual grades, cycling, pressure, installation and jacket integrity |
| PFA + VMQ | PFA jacket with silicone-core flexibility | Wide-temperature static-duty candidates | Compound limits, compression behavior, purity and compliance |
| FEP/PFA + spring | Mechanical energizing without an elastomer core | Special engineered temperature, vacuum or cryogenic candidates | Spring grade, load/deflection, groove, leakage target and validation |
This family is strongest when chemical resistance and elastic contact pressure are both needed in a controlled static gland.
A standard elastomer is not sufficiently resistant to the complete process and cleaning media.
A solid PTFE ring is unattractive because the hardware still needs resilient sealing force.
The seal is static, or movement is very slow and specifically reviewed.
The gland and assembly path avoid excessive stretch, twisting, sharp bending and damaged edges.
Do not default to this construction for reciprocating or rotary motion, abrasive media, rough contact surfaces, substantial elongation, folding, high press-in force, or high pressure without a validated gland and extrusion strategy.
Split hardware, burrs, sharp edges and restricted assembly access can damage the jacket. Chemical, food, pharmaceutical, semiconductor, oxygen, vacuum and cryogenic duties also require the appropriate product-specific evidence.
The best chemical-resistant seal is the one whose limitations match the hardware, motion and validation plan.
| Option | Strength | Limitation | Good starting point when |
|---|---|---|---|
| Elastomer O-ring | High elasticity and simple installation | Compound-specific chemical and temperature limits | A documented elastomer is compatible |
| FEP/PFA encapsulated | Broad media barrier plus elastic core | Jacket damage, limited stretch, primarily static use | Elastomer resistance is inadequate but recovery is needed |
| Solid PTFE O-ring | Broad resistance and simple material construction | Low recovery and cold flow | Hardware maintains load and accounts for PTFE behavior |
| FFKM O-ring | Elastomeric behavior with broad grade-specific capability | Higher cost; compatibility remains grade-specific | Performance or installation flexibility justifies it |
| Spring-energized PTFE | Broad engineered design window | Dedicated profile and gland engineering | Motion, pressure, vacuum or extreme service exceeds an O-ring construction |
Availability is confirmed by jacket/core construction, inside diameter, cross-section, tolerance, quantity and inspection requirement. An ordinary rubber O-ring size is not automatically a drop-in encapsulated replacement: the jacket changes stretch, compressibility and dimensional behavior.
Use a controlled installation procedure for the exact construction and gland. Universal heat, soak, stretch or compression instructions are not appropriate.
Media, cleaning, cycling, surface condition and documentation can change the answer inside the same piece of equipment.
Flanges, vessel covers, filters, pumps, valves and pipelines exposed to solvents or aggressive chemicals.
Low-contamination surfaces and cleaning chemicals, subject to exact compound and finished-part documentation.
Applications where purity, extractables, traceability and cleaning or sterilization cycles must be specified.
Static body joints, covers and flanges; stem duties require separate movement and wear review.
Only after particle, extractable, outgassing, cleaning, packaging and traceability requirements are confirmed.
A separately engineered construction validated for the fluid, thermal cycling, hardware contraction and leakage target.
Visible symptoms can help identify which inputs need review before the next trial.
| Symptom | Possible cause | Check first |
|---|---|---|
| Jacket split or cut | Sharp edge, excessive stretch or forced installation | Installation path, edge radii and handling method |
| Crease or kink | Folding, twisting or high assembly force | Section, groove access and approved procedure |
| Chemical attack on core | Jacket damage or media ingress | Barrier integrity, mixture, temperature and exposure |
| Leakage after cycling | Wrong core response, loss of load or gland movement | Core, compression, hardware expansion and cycle limits |
| Extrusion or nibbling | Excess pressure, gap or unsupported duty | Pressure differential, clearance and alternative design |
| Rapid surface wear | Dynamic or abrasive service | Motion, finish, contamination and alternative profile |
It is a seal with a seamless FEP jacket around a resilient core, commonly FKM or silicone. The jacket provides the media-facing chemical barrier, while the core provides elastic contact force.
Both are fluoropolymer jacket materials with broad chemical resistance. PFA is often considered for a higher-temperature or more mechanically demanding window, while FEP is a common general-purpose starting point. Final selection requires grade- and construction-specific data.
FKM is commonly considered for compression-set behavior and compatible hot service. Silicone is commonly considered for low-temperature flexibility and a softer response. Review the jacket, exact core compound, temperature cycle, clamp load and documentation together.
It uses a stainless-steel spring inside the FEP or PFA jacket instead of an elastomer core. Spring material, load, deflection, jacket, groove, pressure or vacuum, media, temperature cycle and leakage requirement must be validated for each application.
Not automatically. It is less stretchable and compressible, may require different installation access and can behave differently in the gland. Verify size, groove, compression, pressure, media and assembly before substitution.
They are primarily static seals. Slow movement requires specific review; frequent reciprocating or rotary motion and abrasive contact can damage the jacket.
Do not assume so. Capability depends on gland clearance, extrusion gap, temperature, section, construction, pressure cycling and support. Another seal or a backup element may be required.
No universal claim should be made. Request documentation and traceability for the exact jacket, core compound, finished part, process and applicable regulation.
No. An encapsulated ring has a thin melt-processable fluoropolymer jacket around a resilient core. A solid PTFE O-ring is PTFE throughout and has different elasticity, creep, installation and gland behavior.
Provide ID and cross-section, groove drawing, chemical and concentration, temperature range, pressure or vacuum, static or moving duty, surface condition, quantity and required inspection or compliance documents.
Send actual operating conditions so the jacket, core, size and limitations can be reviewed before quotation.
Final suitability depends on the exact compounds, media, temperature, hardware, installation and application validation.
